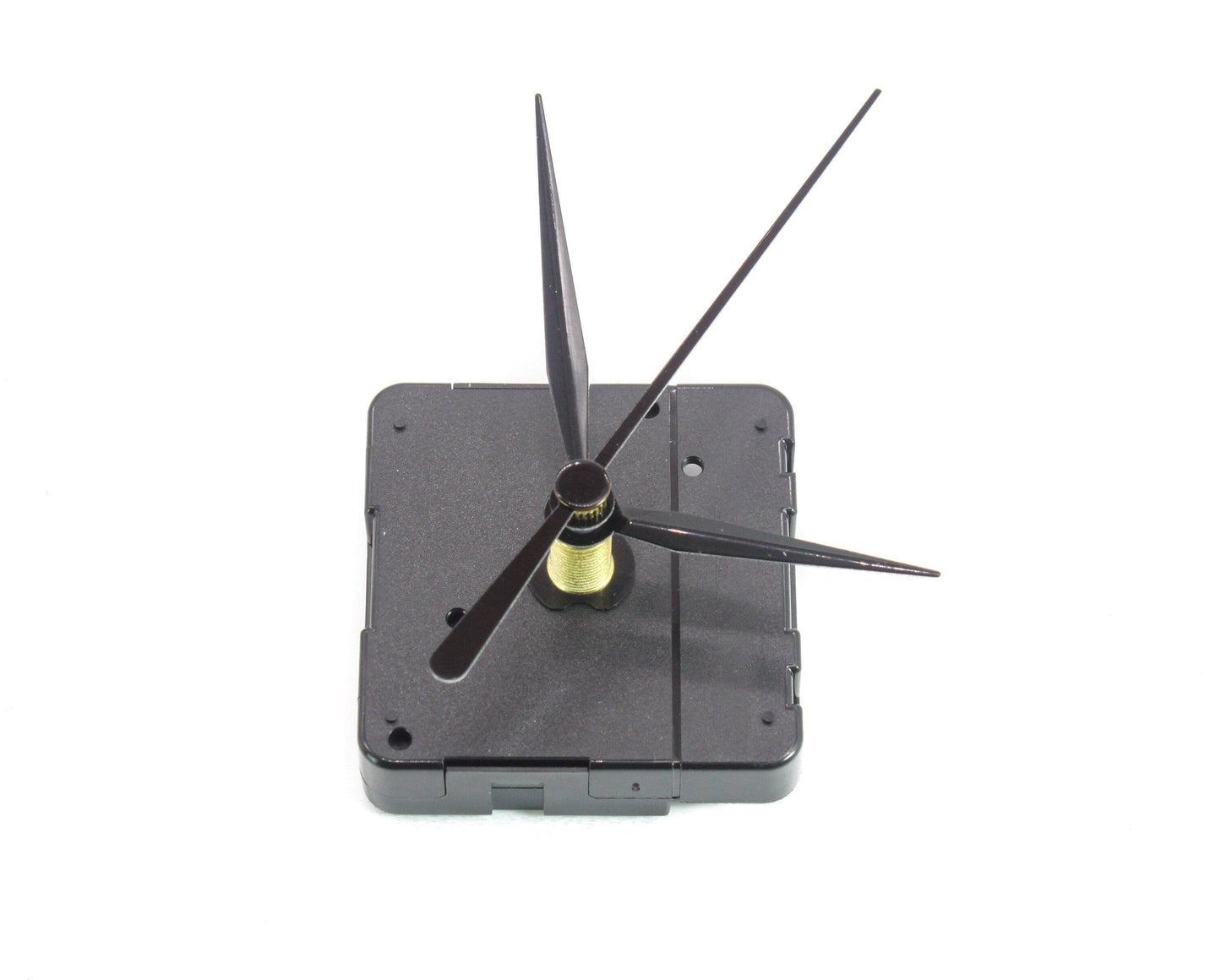

17 x Quartz Clock Kit Movement Mechanism with hands, High Torque, Extra-long "I" shaft, Silent Drive
17 x Quartz Clock Kit Movement Mechanism with hands, High Torque, Extra-long "I" shaft, Silent Drive
Pickup available at 13117 Natchez Avenue
Usually ready in 24 hours
Custom order of 17 Hight quality Quartz Clock Movement Mechanism with long shaft.
Each Quartz Clock mechanism includes:
- mounting hardware (rubber pad, washer, nuts)
- black minute (60mm) & hour (45mm) hands
- second (70mm) hand (select from options)
Shaft length:
Minute: 32 mm
Hour: 28.5 mm
Screw height: 19.4 mm
Size:
56 x 56 x 16 mm
Specification:
Crystal Oscillator: 32.768KHz
Operating Voltage: 1.3V to 1.7V
Current Consumption: < 140uA at 1.5V DC Operating Temperature Range: -10℃ ~ 50℃ Time Keeping Accuracy: ±30 sec/month at 1.5V, 25℃ Torque At Second Hand: 1.0 gf-cm over/at 1.5V Battery Life: About 12 months (1.5 size R6/AA) Working life: 6 Years Materials: Quartz Clock Movement Mechanism, Mounting hardware, Second hand, Minute and Hour hand.
DISCLAIMER: " The logos and trademarks on the upcycled, individual items are those of their respective brand name owners, none of which are associated with this product. "
