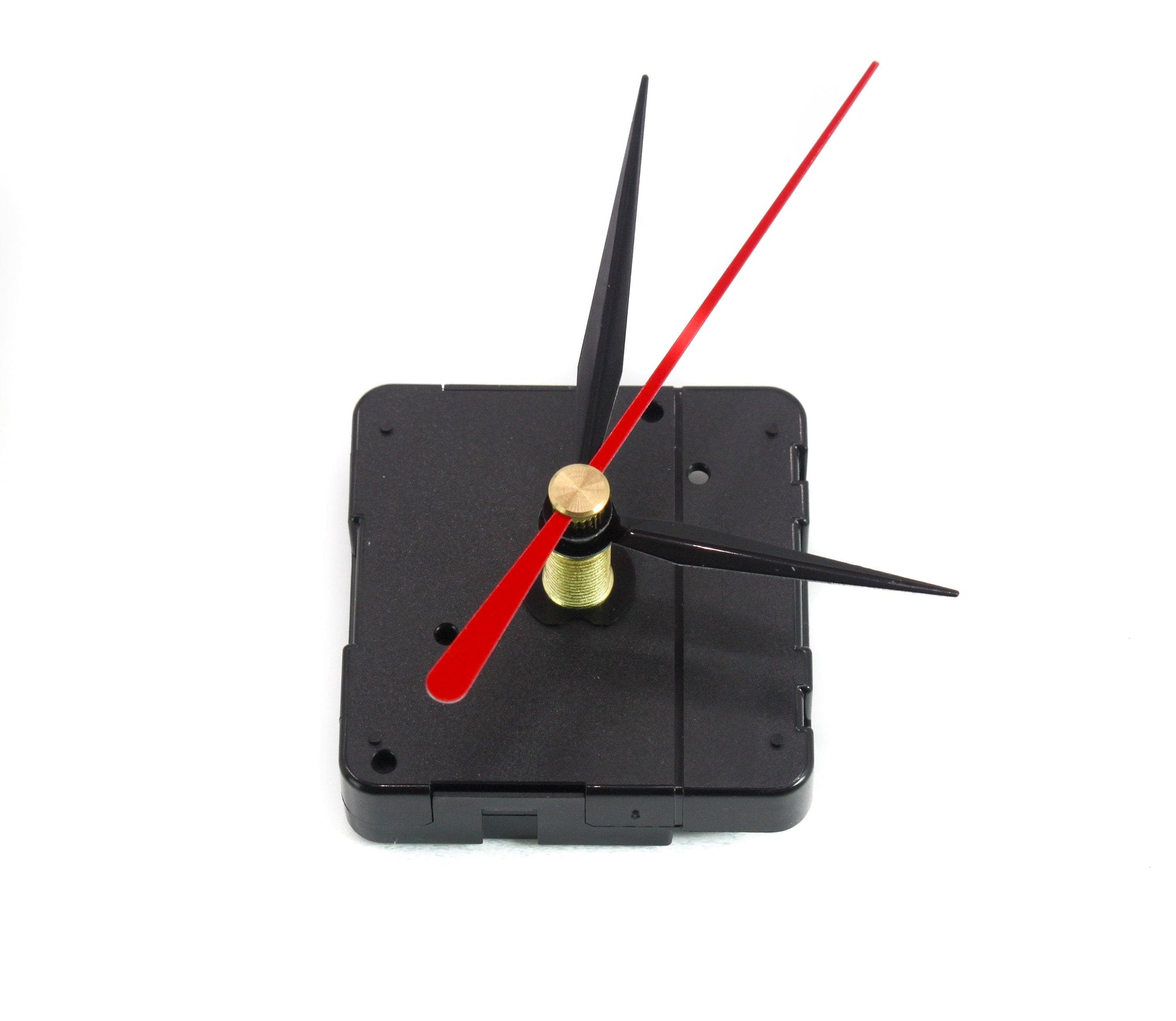

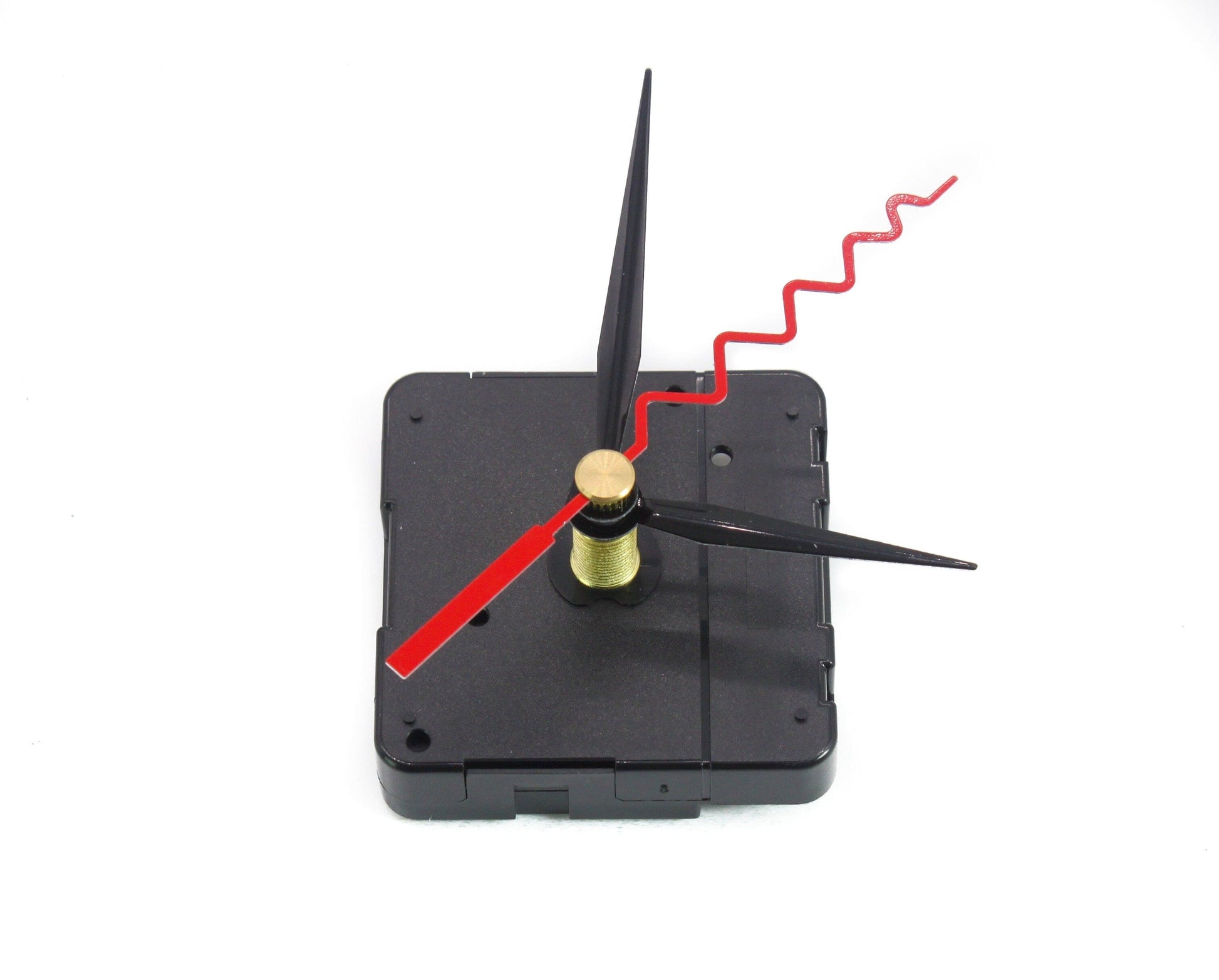

64 x Quartz Clock Kit Movement Mechanism with hands, High Torque, Extra-long "I" shaft, Silent Drive

64 x Quartz Clock Kit Movement Mechanism with hands, High Torque, Extra-long "I" shaft, Silent Drive

Regular price $554.00 CAD
Regular price Sale price $554.00 CAD
Sale Sold out
Shipping calculated at checkout.

Custom order of 64 Hight quality Quartz Clock Movement Mechanism with long shaft.
Each Quartz Clock mechanism includes:
- mounting hardware (rubber pad, washer, nuts)
- black minute (60mm) & hour (45mm) hands
- second (70mm) hand (select from options)

Shaft length:
Minute: 32 mm
Hour: 28.5 mm
Screw height: 19.4 mm

Size:
56 x 56 x 16 mm

Specification:
Crystal Oscillator: 32.768KHz
Operating Voltage: 1.3V to 1.7V
Current Consumption: < 140uA at 1.5V DC Operating Temperature Range: -10℃ ~ 50℃ Time Keeping Accuracy: ±30 sec/month at 1.5V, 25℃ Torque At Second Hand: 1.0 gf-cm over/at 1.5V Battery Life: About 12 months (1.5 size R6/AA) Working life: 6 Years Materials: Quartz Clock Movement Mechanism, Mounting hardware, Second hand, Minute and Hour hand.

DISCLAIMER: " The logos and trademarks on the upcycled, individual items are those of their respective brand name owners, none of which are associated with this product. "
